Over 70% of new broadband deployments in urban United States projects now require fiber-to-the-home. This accelerated move toward full-fiber networks shows the growing need for dependable manufacturing equipment.
Fiber Cable Sheathing Line
Fiber Coloring Machine
Fiber Coloring Machine
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) supplies automated FTTH cable production line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics combines machines and control systems. It produces drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, and LANs.
This modern FTTH cable making machinery provides measurable business value. It provides higher throughput and consistent optical performance with low attenuation. It also aligns with IEC 60794 and ITU-T G.652D / G.657 standards. Customers gain reduced labor costs and material waste through automation. Full delivery services cover installation and operator training.
The FTTH cable production line package includes fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. It also includes SZ stranding line, fiber ribbon line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control and power specs commonly use Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model includes on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. It also offers lifetime technical support and operator training. Clients are typically required to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Key Takeaways
- FTTH cable line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Integrated turnkey packages from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular setups use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Built-in modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
- Modern FTTH cable manufacturing systems reduces labor, waste, and improves optical consistency.
- Support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Line Technology
The fiber optic cable production process for FTTH requires precise control at every stage. Manufacturers use integrated lines that combine drawing, coating, stranding, and sheathing. This approach boosts yield and speeds up market entry. It meets the needs of both residential and enterprise deployments in the United States.
Below, we outline the core components together with technologies driving modern manufacturing. Each module must operate featuring precise timing as well as reliable feedback. The choice of equipment shapes product consistency, cost, and flexibility for various cable designs.
Core Components In Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-output UV curing. Tight buffering as well as extrusion systems offer 600–900 µm jackets for indoor together with drop cables.

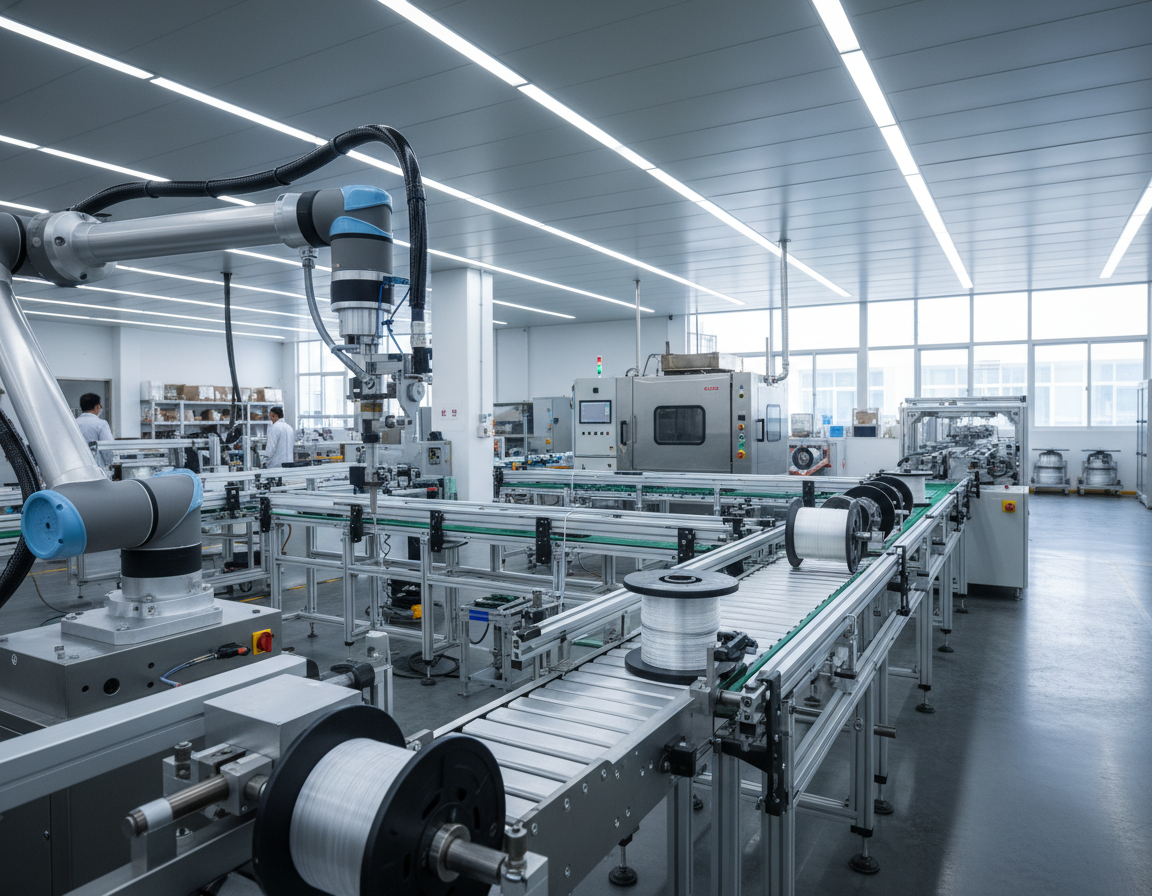

SZ stranding lines use servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines use multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations form PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
Evolution From Traditional To Modern Production Systems
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities now use PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics and modular turnkey setups allow rapid changeover between simplex, duplex, ribbon, together with armored formats. That shift supports automated fiber optic cable manufacturing and lowers labor dependence.
Key Technologies Driving Industry Innovation
High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-output runs. Multi-zone temperature control using Omron PID and precision heaters ensures consistent extrusion output quality.
High-speed UV curing and water cooling accelerate profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Operation | Typical Equipment | Benefit |
|---|---|---|
| Fiber drawing | Automated draw tower with tension feedback | Uniform core size and low attenuation |
| Coating stage | UV-curing dual-layer coaters | Even 250 µm coating that improves durability |
| Fiber coloring | Multi-channel coloring machine | Precise identification for splicing and installation |
| Stranding | SZ stranding line, servo-controlled (up to 24 fibers) | Accurate lay length across ribbon and loose tube designs |
| Extrusion & sheathing | Efficient extruders with multi-zone heaters | PE, PVC, or LSZH jackets with tight dimensional control |
| Armoring | Armoring units for steel tape or wire | Improved outdoor mechanical protection |
| Cooling and curing | Cooling troughs plus UV dryers | Fast profile stabilization and reduced defects |
| Quality testing | Inline geometry and attenuation measurement | Immediate quality verification and compliance data |
Compliance using IEC 60794 as well as ITU-T G.652D/G.657 variants is standard. Producers typically certify to ISO 9001, CE, and RoHS. These credentials enable diverse applications, from FTTH drop cable line output to armored outdoor runs together with data center high-density solutions.
Choosing cutting-edge fiber optic production equipment together with modern manufacturing equipment allows firms meet tight tolerances. That decision enables efficient automated fiber optic cable line output together with positions companies to deliver on scale as well as consistency.
Essential Equipment For Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. That protects the glass during handling.
Producers aiming for high-yield, fast-cycle fiber optic cable production must match material, tension, and curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.
Single and dual layer coating applications meet different market needs. Single-layer setups provide basic mechanical protection and a simple optical fiber cable production machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance and stripability. That helps when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable production machine. Extruders such as 50×25 models, screws and barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, and PLC/HMI platforms from Siemens or Omron provide robust control and monitoring for continuous runs.
Operational parameters support preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.
Fiber Draw Tower And Optical Preform Processing
The fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. That stage sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower relies on real-time diameter feedback and tension management. It helps prevent microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable manufacturing process. Current towers log metrics for traceability as well as rapid troubleshooting.
Output consistency supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration using secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment together with tension as the fiber enters coating, coloring, or ribbon count stations. That connection helps ensure the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, together with geometric tolerances. These services help manufacturers scale toward fast-cycle fiber optic cable line output while maintaining ISO-level quality checks.
| Key Feature | Main Purpose | Typical Target |
|---|---|---|
| Multi-zone furnace | Uniform preform heating for stable glass viscosity | Consistent draw speed and refractive profile |
| Online diameter feedback control | Control core/cladding geometry while reducing attenuation | ±0.5 μm tolerance |
| Managed tension and cooling | Prevent microbends and control fiber strength | Defined tension by fiber type |
| Automatic pay-off integration | Smooth transfer to coating and coloring | Synchronized feed rates for zero-slip transfer |
| On-line test stations | Verify loss, strength, and geometry | Loss ≤0.2 dB/km after coating for single-mode |
Advanced SZ Stranding Line Technology For Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness as well as boost flexibility. That makes it ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Cable makers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend as well as axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, as well as haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 as well as 20 N.
Integration with a downstream fiber cable sheathing line streamlines production and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line delivers a scalable solution for manufacturers. This blend raises throughput while protecting optical integrity as well as mechanical performance in finished cables.
Fiber Coloring Machines And Identification Systems
Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.
Today’s fast-cycle coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning featuring secondary coating lines. UV curing at speeds over 1500 m/min helps ensure color as well as adhesion stability for both ribbon as well as counted fibers.
This next sections review standards as well as coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. This compliance aids technicians in installation as well as troubleshooting. Consistent coding significantly cuts field faults together with accelerates network deployment.
Quality control integrates high-spec fiber identification systems into production lines. In-line cameras, spectrometers, as well as sensors detect color discrepancies, poor saturation, together with coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs together with material compatibility. Leading equipment accepts UV-curable pigments together with inks, compatible with common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. Such supplier support reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.
Specialized Solutions For Fibers In Metal Tube Production
Metal tube together with metal-armored cable assemblies deliver robust protection for fiber lines. They are ideal for direct-buried and industrial applications. This controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling together with centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement as well as controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units using adjustable tension and wrapping geometry. That approach benefits armored fiber cable manufacturing by preventing compression of fiber elements. It additionally keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.
Quality checks include crush, tensile, as well as aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable production modules, ease of changeover, and service support for field upgrades. Such considerations reduce downtime and protect investment in an optical fiber cable production machine.
Fiber Ribbon Line And Compact Fiber Unit Manufacturing
Modern data networks require efficient assemblies that pack more fibers into less space. Producers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That approach employs parallel processes as well as precise geometry to meet the needs of MPO trunking together with backbone cabling.
Advanced equipment ensures accuracy and speed in production. A fiber ribbon line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit line output focuses on tight tolerances as well as material choice. Extrusion together with buffering create compact fiber unit constructions using typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, together with LSZH for durability as well as flame performance.
High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter and simplify routing. They are compatible with MPO trunking and high-count backbone systems.
Production controls together with speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC together with HMI touch-screen control enable quick parameter changes and synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing and testing stations support bespoke high-speed fiber cable production line requirements.
| Key Feature | Fiber Ribbon System | Compact Unit | Benefit To Data Centers |
|---|---|---|---|
| Line speed | As high as 800 m/min | Up to 600–800 m/min | Greater throughput for large-scale deployments |
| Main production steps | Automated alignment, bonding, and curing | Extrusion, buffering, tight-tolerance winding | Stable geometry and reduced insertion loss |
| Materials | Specialty tapes and bonding resins | PBT, PP, and LSZH jackets/buffers | Long service life with compliance benefits |
| Quality testing | Inline attenuation and geometry checks | Precision dimensional control with tension monitoring | Lower failure rates and faster rollout |
| Line integration | Sheathing and splice-ready stacking | Modular compact units for dense cable solutions | More efficient MPO trunk and backbone deployment |
How To Optimize High-Speed Internet Cables Production
Efficient high-output fiber optic cable line output relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, as well as tension systems. That ensures optimal output for flat, round, simplex, as well as duplex FTTH profiles.
Cabling Systems For FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Fiber Pulling Process Quality Assurance
Servo-controlled pay-off together with take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, as well as crush and aging cycles. Such tests verify performance.
Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
Meeting Optical Fiber Drawing Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, as well as local after-sales support. Top FTTH cable production line manufacturers deliver turnkey layouts, remote monitoring, as well as operator training. That lowers ramp-up time for US customers.
Closing Summary
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It also includes sheathing, armoring, and automated testing for consistent high-speed fiber production. A complete fiber optic cable production line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.
For United States manufacturers together with system integrators, partnering with reputable suppliers is key. They should offer turnkey systems using Siemens or Omron-based controls. That incorporates on-site commissioning, remote diagnostics, together with lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. These integrated packages simplify automated fiber optic cable manufacturing and reduce time to line output.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs and turnkey proposals, and schedule engineer commissioning and operator training.
