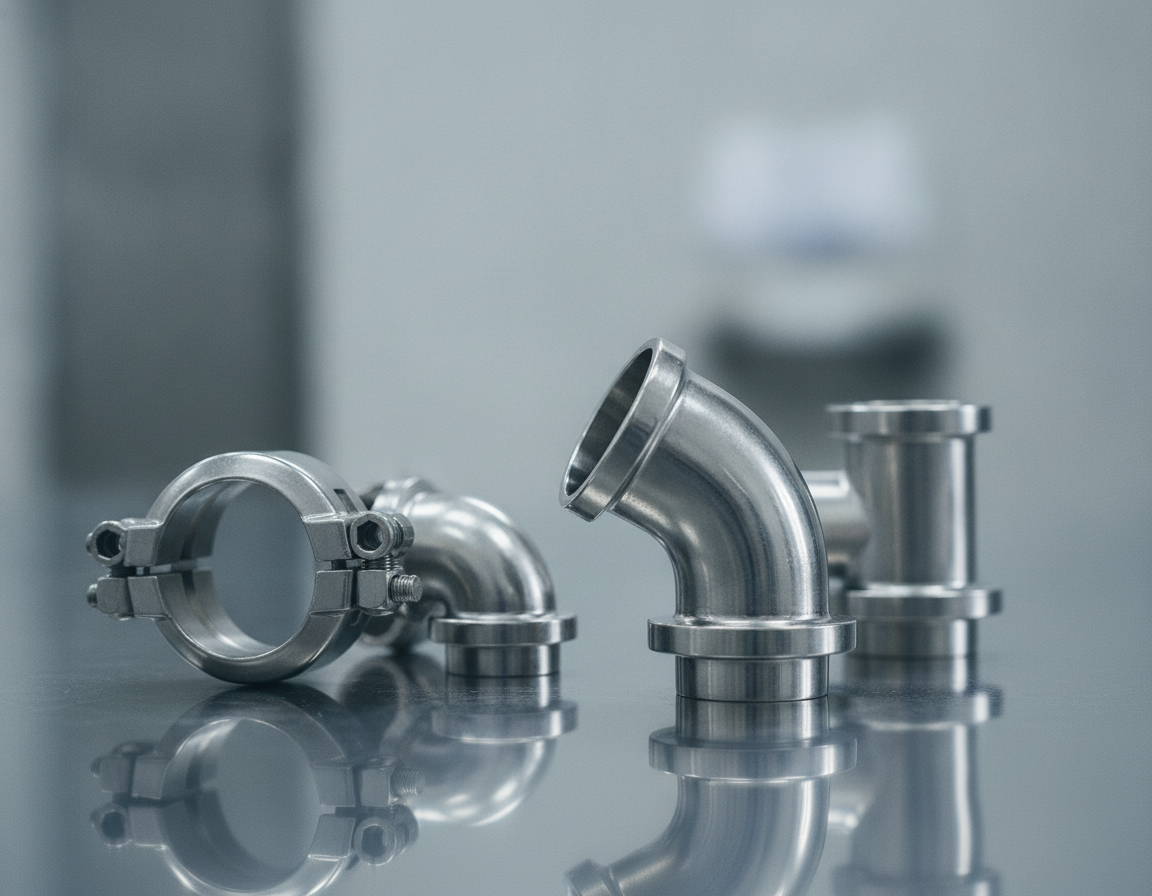

Across many industries, stainless steel sanitary pipe fittings are critical for keeping process systems hygienic. These components, including ferrules, clamps, sanitary valves, and fittings, are engineered to keep fluid paths clean. They greatly lower contamination risks and make cleaning easier.
Sanitary Connections
Selecting the right Hygienic Fittings and Ss Sanitary Fittings influences product safety, uptime, and regulatory compliance. Material grade, surface finish, and connection compatibility are major selection factors. These details control how easily the system can be cleaned, validated, and maintained.
Reliable suppliers and detailed catalogs are important for operations teams to select the right parts. Brands like CSI and distributors such as Installation Parts Supply supply essential information. They share catalog listings, lead times, and customer reviews to guide purchasing decisions for Sanitary Valves And Fittings.
Important Takeaways
- Stainless Steel Sanitary Pipe Fittings enable contamination control in clean process systems.
- Cleanability and corrosion resistance are influenced by material grade and surface finish.
- Compatible Hygienic Fittings help reduce downtime during upgrades, changeovers, and maintenance.
- Supplier catalogs and reviews from CSI and Installation Parts Supply help with reliable sourcing.
- Proper selection of Sanitary Valves And Fittings supports regulatory compliance and product quality.
Understanding Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems
Sanitary systems depend on components designed for safety and efficiency. A sanitary fitting should feature smooth surfaces, tight seals, and accessible cleaning points. These features limit contamination and support clean-in-place and sterilize-in-place procedures.
Definition And Purpose Of Sanitary Fittings
Sanitary fittings, often called hygienic fittings, are designed to create crevice-free connections. That design limits bacterial growth and helps maintain product purity during transfer and processing. Their design facilitates quick cleaning and minimizes cross-contamination risks.
Where Hygienic Fittings Are Used
Food processors use hygienic fittings to maintain safety standards and reduce spoilage risk. Beverage manufacturers use these fittings to protect flavor, clarity, and shelf life. Pharmaceutical plants specify fittings that meet strict regulatory requirements.
Biotech facilities depend on precise sanitary connections for cell culture and fermentation. These industries prioritize traceability, repeatable cleaning, and compatible materials.
Why Stainless Steel Works Best For Hygienic Systems
Stainless steel is favored for its corrosion resistance, mechanical strength, and cleanability. Grades like 304 and 316L withstand chemicals and high temperatures. They also support smooth finishes, low Ra values, and electropolished surfaces.
Stainless components limit bacterial growth and extend service life under aggressive cleaning. Tri Clover Sanitary Fittings and other standardized interfaces speed up assembly, inspection, and maintenance in hygienic systems.
Guide To Stainless Steel Sanitary Pipe Fittings
Stainless steel sanitary pipe fittings are critical in modern clean systems for food, beverage, and pharmaceutical industries. Choosing the right material, component type, and surface finish minimizes contamination risk and makes cleaning easier. This guide will explain common grades, typical component families, and finish options for hygienic performance.
Sanitary Stainless Steel Materials And Grades
Type 304 stainless steel delivers corrosion resistance and mechanical strength, making it suitable for many general processing lines. It is commonly used for tanks, structural supports, and areas where product-contact risk is lower.
Type 316L provides stronger resistance to chloride pitting and crevice corrosion. Pharmaceutical manufacturers often choose 316L for wetted parts because its low carbon content helps reduce sensitization during welding.
Matching stainless grades across components helps maintain corrosion resistance and reduce galvanic issues at connections. Specifying 304 or 316L early in design helps control procurement of SS Sanitary Fittings and related parts.
Common Sanitary Fitting Types And Their Roles
Ferrules are the basic connection points for butt-weld and weld-in assemblies. They are available in 304 or 316L with polished IDs to match process piping.
Two-piece clamps, often called Tri-Clamp or Tri-Clover style clamps, allow quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings support smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings connect flexible transfer lines and permanent piping. Sanitary Valves And Fittings manage flow while maintaining cleanable contours. Designing with compatible SS Sanitary Fittings helps reduce leaks, downtime, and maintenance problems.
Surface Finish And Cleanability Requirements
Surface roughness influences how residues adhere. A 32RA internal finish is a common spec that combines cost and cleanability for most food and beverage applications.
Electropolishing further smooths the stainless surface and improves passivity. This treatment helps limit microbial harborage and improves corrosion resistance in aggressive environments.
Specifying matching finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When components share 32RA or electropolished surfaces, cleaning validation becomes more repeatable.
| Component | Common Material | Standard Finish | Main Use |
|---|---|---|---|
| Ferrules for welded assemblies | 304 or 316L | 32RA internal/external finish | Sanitary welded pipe ends |
| Two-piece Tri-Clamp clamps | 316L commonly preferred | Polished or electropolished finish | Quick-release hygienic joints |
| Couplings and weld fittings | 304 or 316L stainless | 32RA, electropolished optional | Permanent joins, elbows, tees |
| Sanitary Hose Fittings | 316L often specified | Electropolished where product contact occurs | Flexible connections, transfer lines |
| Sanitary Valves And Fittings | 316L for wetted parts | Polished internal surfaces | Flow control with hygienic profiles |
Tri Clover Fittings, Tri-Clamp Fittings Catalog, And Triclover Fitting Options
Tri Clover Pipe Fittings align with strict dimensional standards, ensuring compatibility across manufacturers. Standards such as DIN 32676 and DIN 11864-3A define ferrule-face geometry and clamp interfaces. This ensures sanitary lines remain leak-free and easy to maintain. These standards streamline the selection of Triclover Fittings for food, beverage, and pharmaceutical applications.
When perusing a Tri-Clamp Fittings Catalog, focus on size ranges, material specifications, and surface finishes. Catalogs often list two-piece clamps from 0.25″ to 4″, including single-pin options and matching gaskets. Ferrules are detailed with length and finish, with common options being 304 and 316L, finished to 32RA for enhanced cleanability.
Key items in catalogs include clamps, ferrules, and gasket sets, sized in inches or DN. Small two-piece clamps may start under ten dollars, while larger clamps often fall in the low double-digit range. Each Triclover Fitting listing should show OAL, ID/OD finish, gasket compatibility, and material grade. This helps ensure the correct part is chosen at the time of order.
High-pressure applications may require double-bolt or heavy-duty two-piece clamps. These clamps use a 304 stainless body with brass nuts, balancing strength and corrosion resistance. For critical process lines, select high-pressure clamps based on rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
Material choice affects service life, cleanability, and corrosion resistance. 316L ferrules provide better chloride resistance in harsh or chemically aggressive environments. Make sure the Tri-Clamp Fittings Catalog lists ferrule metallurgy, clamp construction, and finish details. This supports the selection of Tri Clover Pipe Fittings based on process conditions and application requirements.
Spec sheets should list clamp size charts, ferrule dimensions, and part numbers to streamline procurement. A well-organized catalog enables quick replacement of Triclover Fittings, minimizing downtime. Seek suppliers that provide detailed specs for each Tri Clover Fitting to ensure interchangeability across brands.
Sanitary Connections, CSI Sanitary Fittings, And Compatibility
Sanitary connections are vital for linking pipes, valves, and equipment in clean systems. The correct joint type is important for maintaining cleanability, efficiency, and reliability. This section covers common connection styles, brand interchangeability, and supplier reliability feedback.
Common connection types include Tri-Clamp connections, butt-weld fittings, socket-weld fittings, threaded links, and sanitary hose fittings. Each type has its own advantages and disadvantages regarding assembly speed, cleanability, and leak risk.
Clamp connections are preferred for their quick assembly and ease of disassembly for cleaning. Welded joints, on the other hand, provide the smoothest internal profile for cleaning-in-place CIP and sanitizing-in-place SIP processes. Threaded fittings are acceptable for low-risk applications where product contact is not a concern. Sanitary hose fittings require matched ferrules and a secure Sanitary Coupling to prevent leaks.
Brand compatibility matters when components from multiple suppliers are mixed. CSI Sanitary Fittings and Csi Fittings align with common standards like Tri-Clamp and DIN, making them generally interchangeable with other manufacturers. Steel & O’Brien provides spec sheets that confirm compatibility with major Tri-Clamp systems when standards are followed.
To verify compatibility, match the nominal size, sealing face, material grade, and surface finish. Verify standards such as DIN 32676 and DIN 11864 on datasheets. Mismatched finishes or grades can lead to corrosion or trap product residues.
Customer reviews can provide practical insight into supplier reliability and fulfillment speed. Reviews for CSI show consistent part quality and quick shipping, with some buyers experiencing next-day delivery on stock items. Others praise the responsive communication after order inquiries.
When evaluating suppliers, review lead times, documented quality, and after-sale support. Reliable shipping and clear spec sheets reduce downtime and avoid costly returns when purchasing Sanitary Connections, CSI Sanitary Fittings, or components from Steel & O’Brien.
| Connection Style | Recommended Application | Hygienic Cleanability | Interchangeability Notes |
|---|---|---|---|
| Clamp Tri-Clamp | Product-contact lines needing frequent disassembly | High; gasketed seal easy to clean | Strong interchangeability when standards, faces, and sizes align |
| Butt-weld and socket-weld fittings | Permanent runs needing smooth bore | Excellent after correct weld finishing and polishing | Cross-brand fit depends on matching standards and dimensions |
| Threaded sanitary-style connection | Low-risk applications away from product contact | Lower cleanability where threads contact process fluids | Use carefully and confirm grade, thread style, and finish |
| Hose with Ferrule | Flexible transfer lines and temporary connections | Strong if fitted with matching ferrules and couplings | Compatibility depends on ferrule shape, gasket, and clamp match |
Sanitary Pipe Fittings Stainless And SS Sanitary Fittings Selection Guide
Selecting the correct sanitary components depends on a focused review of size, material, finish, and pressure. This guide helps match size, material, finish, and gasket type to process requirements. Use the checks below to reduce downtime and support hygienic performance.
Begin with size and designation. Confirm DN and TC stamping and verify DN TC inch equivalents before ordering. Common catalog mappings include DN20, DN25, DN32, DN40, DN50, DN65, and DN100 matched to 0.25″–4″ Tri-Clamp sizes. Check mating surfaces, gasket groove styles, and flange faces to ensure compatibility.
Material selection is critical. For many food and beverage lines, 304 stainless meets strength, cleanability, and cost requirements. For pharmaceutical, chloride-exposed, or aggressive-cleaning processes, choose 316L for better corrosion resistance and weldability. Most suppliers list 316L ferrules and fittings as standard options for harsh environments.
Surface finish and gasket selection affect cleanability, seal life, and validation results. Specify finish targets such as 32RA or electropolished surfaces. Match gasket materials like EPDM, PTFE, or silicone to temperature, chemical exposure, and product contact requirements. Confirm gasket cross-section, clamp type, and clamp pressure to help prevent leaks.
Assess pressure and clamp type. Standard clamp clamps handle everyday sanitary services. High-pressure service may require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review pressure ratings in the catalog and select clamps rated above operating pressure for safety margin.
Consider Copper Tri Clamp Fittings for niche needs. Copper tri clamp fittings offer conductivity and antimicrobial benefits in select systems. Before pairing copper with stainless lines, validate compatibility with cleaning agents, product chemistry, and dissimilar-metal corrosion risk.
Final verification steps can save money and prevent ordering mistakes. Compare catalog part numbers against DN/TC inch equivalents, confirm grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, and clamp pressure to streamline spare parts ordering and maintenance.
Installation, Maintenance, And Best Practices For Sanitary Coupling And Sanitary Weld Fittings
Keeping sanitary connections clean and reliable is essential in hygienic systems. Follow specific steps for assembling tri-clamp assemblies and welded joints to avoid leaks and contamination. Keeping detailed records of materials, finishes, and maintenance is important for traceability and audits.
Correct assembly steps
Start by cleaning ferrule faces thoroughly and checking gaskets for cuts, deformation, or other defects. Place the gasket between the ferrule faces and make sure the sealing surfaces are properly aligned. Next, install the clamp, hand-tighten it, and then apply specified torque using a calibrated wrench. For high-pressure applications, use double-bolt clamps with brass nuts and adhere to the recommended torque to prevent over-compression.
Guidance for Sanitary Weld Fittings
When working with weld joints, prepare the tube ends to the specified Ra finish before welding. Use inert gas for purging to prevent oxidation on 316L stainless steel. After welding, inspect the weld contour and smoothness. If necessary, rework any rough spots by grinding and electropolishing to restore the low roughness and maintain hygiene.
Routine Sanitary Maintenance
Implement CIP and SIP cycles as required by the process. Inspect ferrule faces, clamps, and gaskets after thermal cycles, production runs, and scheduled cleaning. Replace gaskets if they show signs of hardening, extrusion, or permanent deformation. After each maintenance activity, verify clamp torque, gasket seating, and alignment.
Troubleshooting common issues
Identify leaks by first checking clamp seating and gasket condition. Misaligned clamps can cause uneven compression and create leaks. To correct this, loosen the assembly, realign it, and retighten to the specified torque. For gasket extrusion or failure, ensure the correct durometer and material are used, and confirm the groove dimensions match the ferrule specifications.
Addressing surface damage
Surface damage such as scratches, pits, or crevice corrosion can trap microorganisms and residues. Minor scratches can be polished out and then electropolished to restore the Ra levels. Components should be replaced if pitting penetrates the surface or if polishing would remove too much material.
Documentation and maintenance records
Keep detailed records of material grades, surface finishes, gasket types, clamp models, and service dates. Maintain calibration records for torque tools and welding equipment. Accurate records support compliance, audits, validation, and faster troubleshooting.
| Task | Interval | Primary Action | Important Notes |
|---|---|---|---|
| Clamp torque check | After installation and on a monthly schedule | Use calibrated torque tools | Use manufacturer torque table for Sanitary Coupling sizes |
| Gasket inspection and replacement | Every 3 to 12 months or when failure occurs | Check for cuts, hardening, swelling, or extrusion | Replace only with compatible gasket material |
| Surface finish inspection | After weld work and during quarterly checks | Measure Ra, inspect visually | Restore finish when roughness exceeds the process specification |
| Weld inspection | After installation, then yearly | Inspect for undercut, porosity, profile | Repair, polish, and revalidate Sanitary Weld Fittings as required |
| Cleaning and sterilization validation | Each process cycle | Record process parameters during each cycle | Keep records for traceability and audits |
Buying Sanitary Fittings From Catalogs, CSI, And Installation Parts Supply
Starting with a detailed catalogue review is essential. Look for a Sanitary Fittings Catalog that includes material grade, finish, and pressure rating. It should also mention standards like DIN 32676 or DIN 11864-3A. Before ordering, confirm item codes, stock status, lead times, and compatibility to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, check clamp type, gasket compatibility, and dimensional specs. Check whether ferrules and fittings are finished to 32RA, electropolished, or another required specification. A detailed catalog keeps matching gaskets and clamps easier during assembly.
Check Csi Fittings performance by reading independent reviews and supplier lead times. Many buyers report next-day shipping for common parts and responsive customer service on quality questions. Confirm return terms for precision components to protect tight-tolerance projects.
Use the following example listing to estimate market pricing and compare common stocked sizes. These prices reflect typical catalog-style entries and help set realistic procurement budgets.
| Item | Nominal Size | Grade | Surface Finish | Catalog Price (USD) |
|---|---|---|---|---|
| Single-pin two-piece clamp | Quarter-inch to three-quarter-inch | 304 stainless | Standard | 3.91 USD |
| Single-pin two-piece clamp | 1 inch | 304 | Standard catalog finish | 4.91 USD |
| Two-piece single-pin clamp | 2 inch | 304 | Standard catalog finish | Approx. $5.99 |
| Two-piece single-pin sanitary clamp | 2.5″ | Type 304 stainless steel | Standard catalog finish | Approx. $6.93 |
| Single-pin two-piece clamp | 3″ | 304 stainless | Standard catalog finish | Approx. $7.54 |
| Two-piece single-pin clamp | 4″ | 304 | Standard finish | 9.16 USD |
| TC sanitary ferrule | 2″ size, 1.125″ overall length | Type 316L stainless steel | 32RA internal and external finish | Approx. $4.24 |
| TC sanitary ferrule | 2″ size, 1.125″ overall length | 304 stainless | 32RA ID and OD | $4.06 |
| Ferrule TC | 3 inch | 316L | 32RA internal and external finish | Approx. $6.15 |
| Double-bolt high-pressure clamp | 1.5″ | Type 316 stainless steel | Polished | $12.93 |
| Double-bolt high-pressure clamp | 2 inch | 316 stainless | Polished sanitary finish | Approx. $14.62 |
| High-pressure sanitary clamp | 3 inch | 316 stainless | Polished sanitary finish | 20.26 USD |
Installation Parts Supply is a U.S.-based supplier for sanitary valves, ferrules, clamps, and related process parts. Use their online listings to check availability, finishes, and exact pricing for specific Tri-Clamp Fittings Catalog items. Review product pages to cross-check pressure ratings and gasket materials before purchase.
When sourcing parts, prioritize catalogs that clearly separate 304 from 316L, state surface finish, and cite applicable standards. A targeted Sanitary Fittings Catalog search can streamline procurement and reduce returns on critical process components.
Final Thoughts
Stainless Steel Sanitary Pipe Fittings are essential for maintaining cleanliness in various industries. Choosing between 304 and 316L, along with finishes such as 32RA or electropolishing, directly supports cleanability. This minimizes contamination risks significantly. Ensuring Tri Clover Fittings and related parts meet standards such as DIN 32676 is important for tight Sanitary Connections and easier interchangeability.
When selecting fittings, evaluate the material, finish, and connection type. This includes Tri-Clamp, weld, hose, or threaded connections, based on pressure, product contact, and regulatory requirements. Use high-pressure clamps where process pressure or safety margins require them. Consistency in gaskets, clamps, and ferrules reduces leaks and simplifies maintenance. Proper installation and regular cleaning extend the lifespan of fittings and ensure compliance with hygiene standards.
Catalogs provide useful pricing for two-piece clamps, ferrules, and high-pressure options. This helps balance cost, reliability, and availability in procurement decisions. When looking for where to buy sanitary fittings, prioritize reputable U.S. suppliers. Those suppliers should list specifications, finishes, standards, and part details to confirm compatibility with CSI and other branded fittings.
Following these guidelines streamlines system design and upkeep. Clear specifications, consistent materials, and trusted sources minimize downtime. This protects product quality in hygienic processing environments.
